精品高線生產線年產能70萬噸，關鍵技術和高速區核心工藝和設備由美國摩根公司設計和提供，全線自動化和傳動系統由ABB公司負責設計和集成，使產品在質量、性能和成本等方面都具有很強的市場競爭能力。該生產線采用國際上先進適用的生產技術和裝備，最大終軋保證速度為112m/s，采用熱裝熱送工藝及目前世界上最先進的精軋機“8+4”型式等，可實現熱機軋制工藝技術、全線的數字化控制和在線測徑技術、全線的控軋控冷技術、在線HotEye熱眼影像式表面質量檢測技術。生產的線材內部組織均勻，橫斷面上晶粒度差小于1級，通條性能均勻，氧化鐵皮少。產品規格：?5mm～?25mm，主要產品為軸承鋼、彈簧鋼、冷鐓鋼、簾線鋼、易切削鋼等。應用于軸承、汽車、風力發電、橋梁建筑等領域，是一條具有國內一流、國際領先水平的高速線材生產線。

The high-quality high-line production line has an annual production capacity of 700,000 tons, and the key technologies and core processes and equipment in the high-speed area are designed and provided by Morgan Company of United States. The whole line’s automation and transmission systems were designed and integrated by ABB, ensuring that products have highly competitive quality, performance, and cost. The production line is designed with internationally advanced and applicable production technology and equipment, with a maximum finishing speed guarantee of 112m/s. It utilizes hot charging and hot delivery processes and the most advanced finishing mill “8+4” configuration in the world, enabling hot rolling process technology, whole line digital control and online diameter measurement technology, whole line controlled rolling and cooling technology, and online HotEye surface quality inspection technology. The internal structure of the produced wire rod is uniform with grain size difference on the cross section less than Grade 1, and the wire rod performance is uniform with less iron oxide scale. The product specification ranges from ?5mm to ?25mm. It mainly produces bearing steel, spring steel, cold heading steel, cord steel, free-cutting steel, etc. With wide application in bearings, automobiles, wind power generation, bridge construction and other fields, this high-speed wire rod production line ranks among the top class both domestically and internationally.

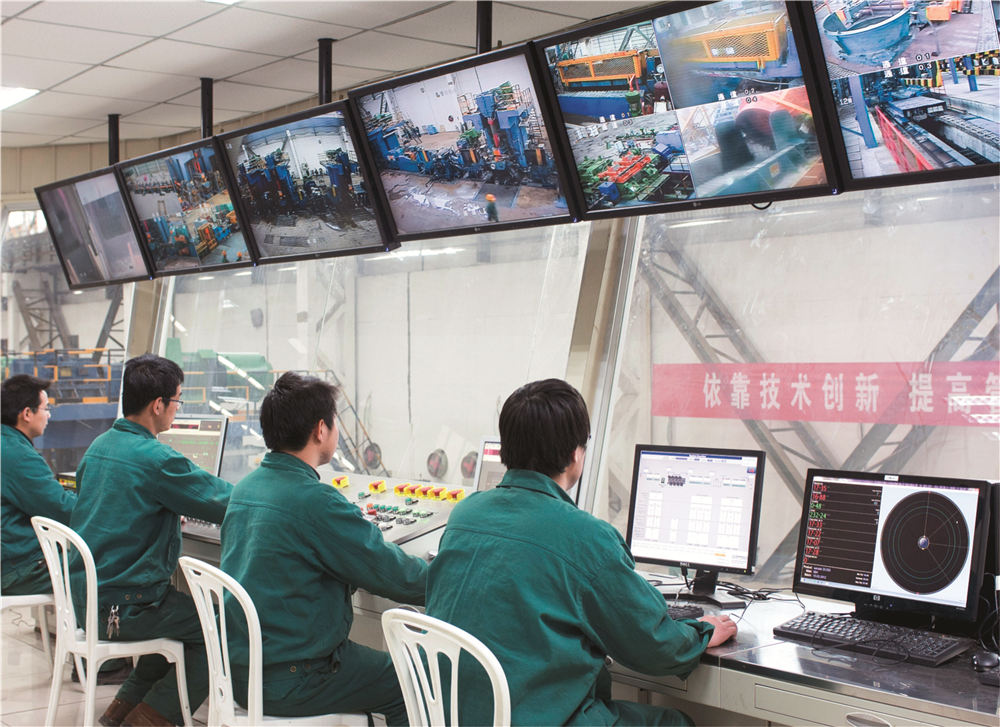

主控室  MASTER CONTROL ROOM

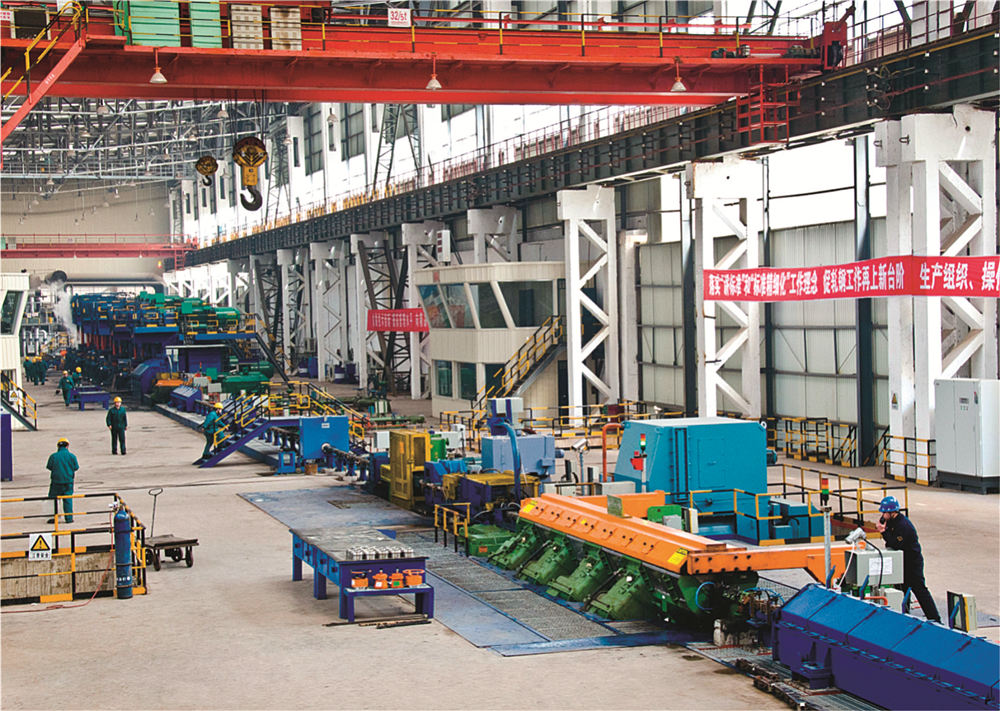

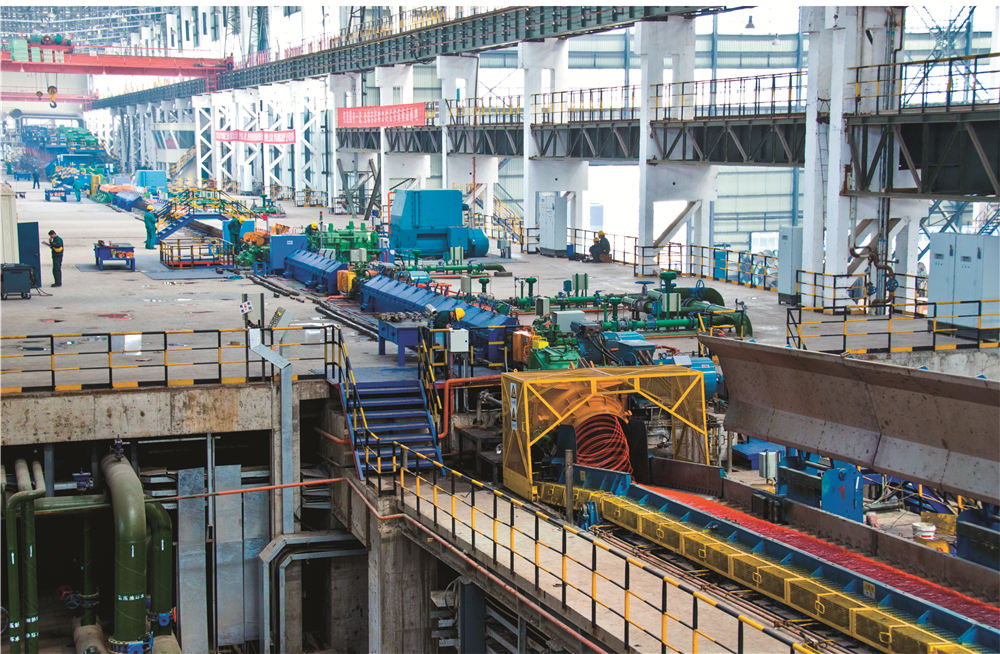

精品高速線材生產線  THE BOUTIQUE HIGH-SPEED WIRE ROD PRODUCTION LINE

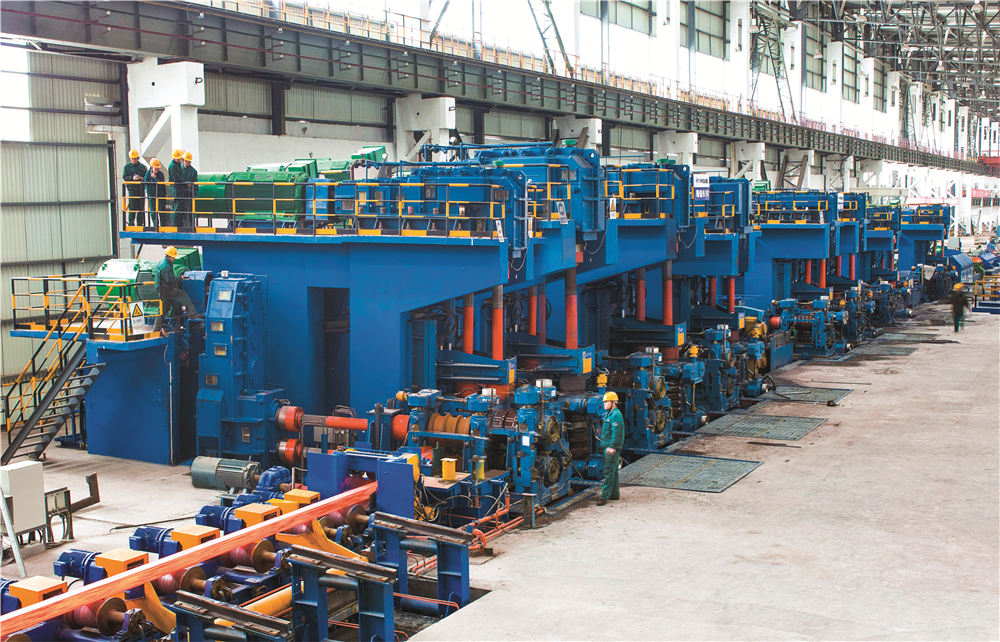

粗軋機  ROUGHING MLLL

美國摩根七代 8+4 精軋機組MORGAN 7TH GENERATION 8+4 FINISHING ROLLING MILL

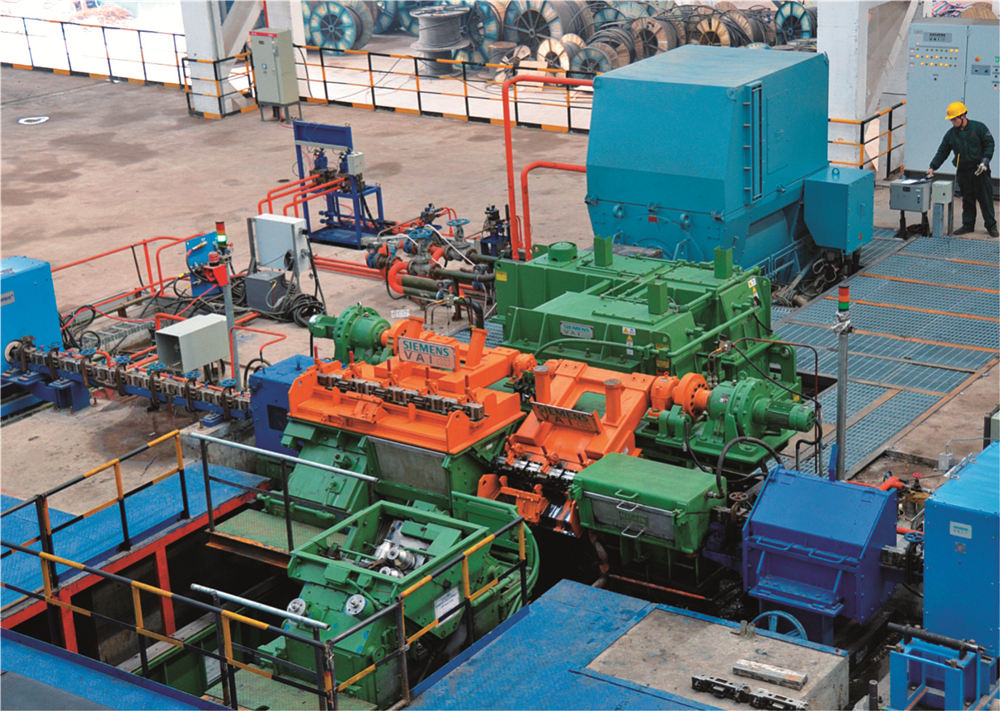

美國摩根減定徑機組AMERICAN MORGAN REDUCLNG SLZLNG ROLLLNG MLLL

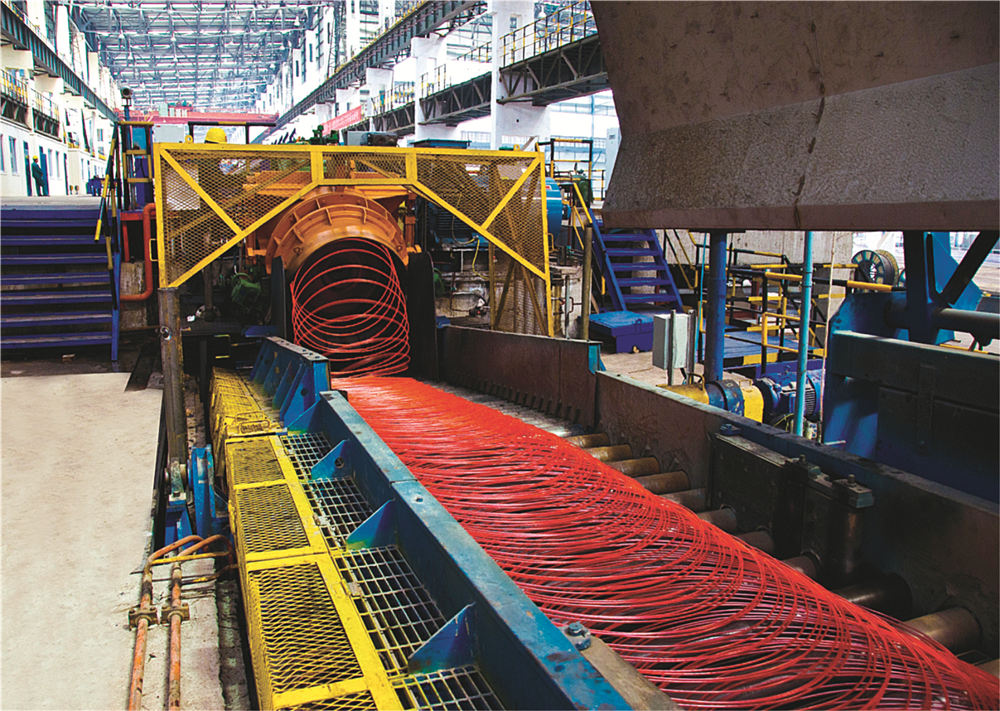

吐絲機SPLNNLNG MACHLNE

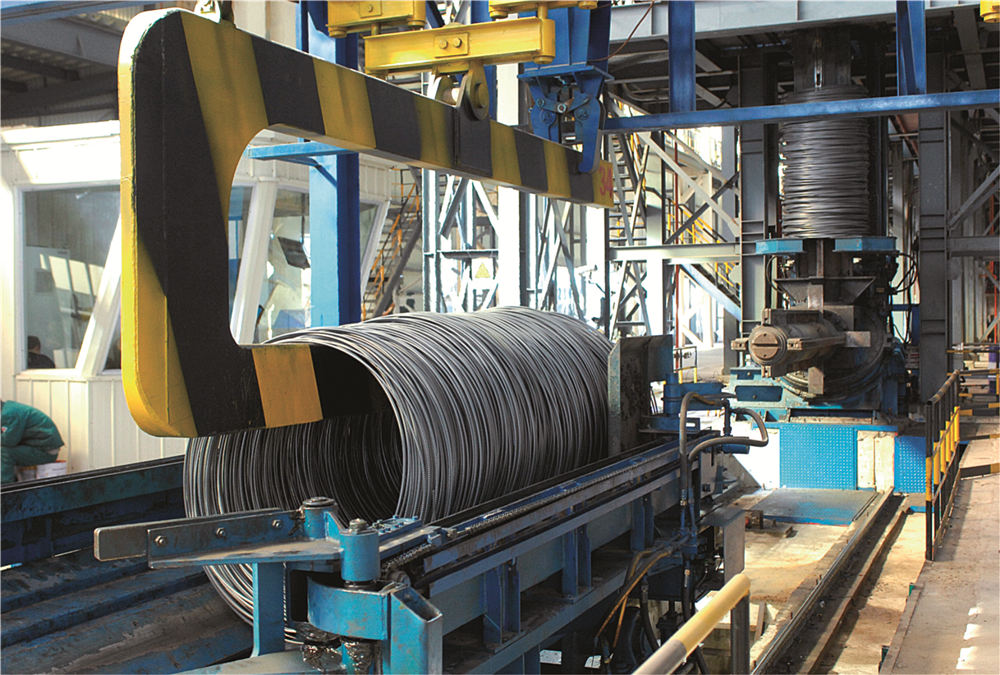

成品收集區COLLECTING AREA
